Metering & API Keys

Hosted access to the BDS market is metered. Every /mpp/... call against the full-node resolver deducts credits from your balance. The API key you receive after signup is the Bearer token for both direct HTTP access and the hosted MCP server.

note

Check the Architecture page for a diagram of the metering service and API key flow.

Implementation: powerloom/bds-agenthub-billing-metering

Plans and credit balance

List available plans (no key required). The embed below fetches the live metering service response when this page loads, so it stays aligned with the deployed plan table.

curl -sS https://bds-metering.powerloom.io/credits/plans

Live payment plans

Fetched from GET /credits/plans on the metering service.

Open JSON

curl -sS https://bds-metering.powerloom.io/credits/plans

Loading latest plans...

Check your balance:

GET https://bds-metering.powerloom.io/credits/balance
Authorization: Bearer sk_live_...

Or via CLI:

bds-agent credits balance

Signup

All signup paths lead to the same metering service at https://bds-metering.powerloom.io/metering.

Browser signup (free — 2 credits included)

Free credits — no strings

The 2 free credits work identically to paid credits. Same API, same verification objects, same key format. If you want to explore what BDS data looks like before committing any tokens, this is the fastest path.

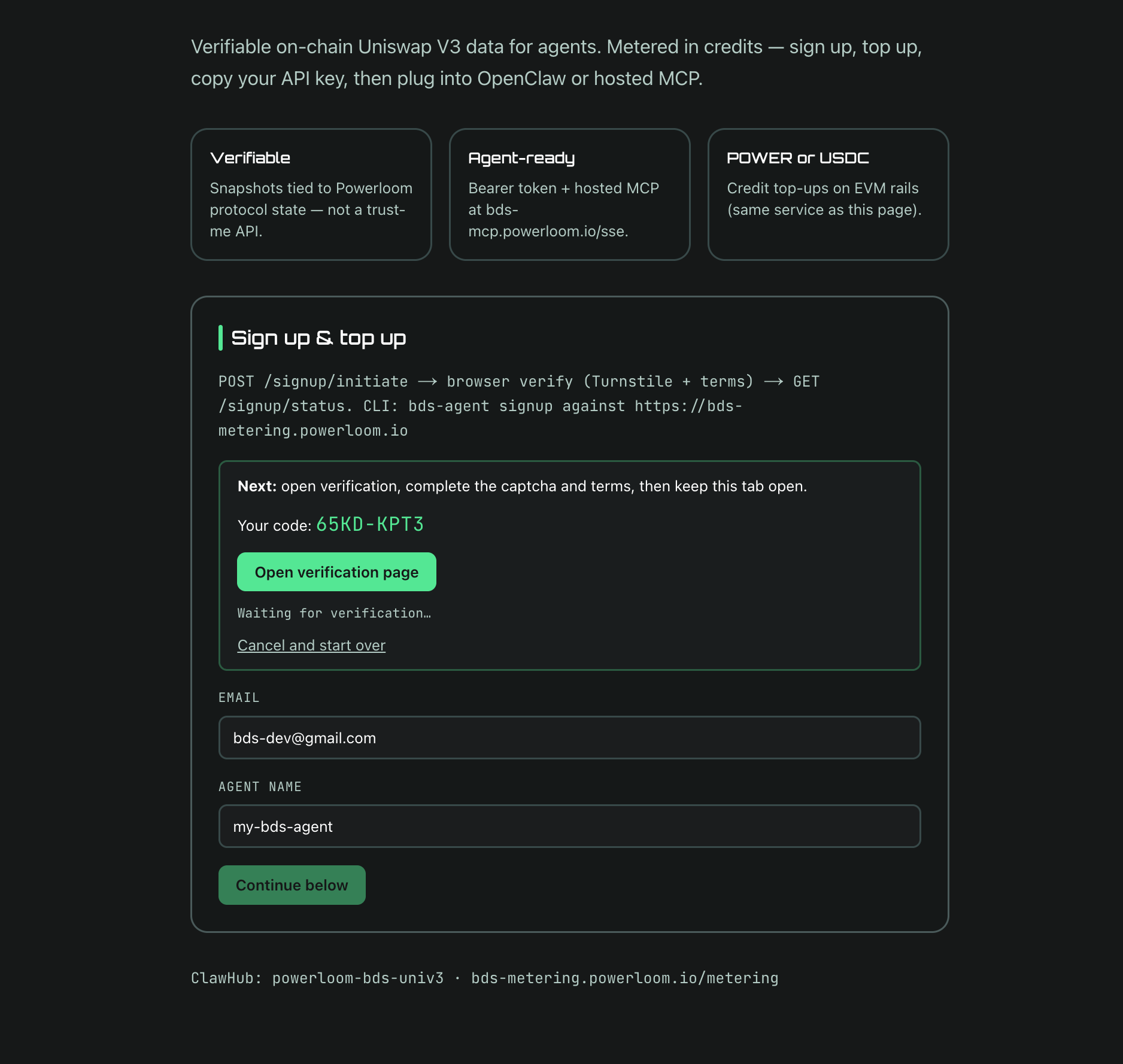

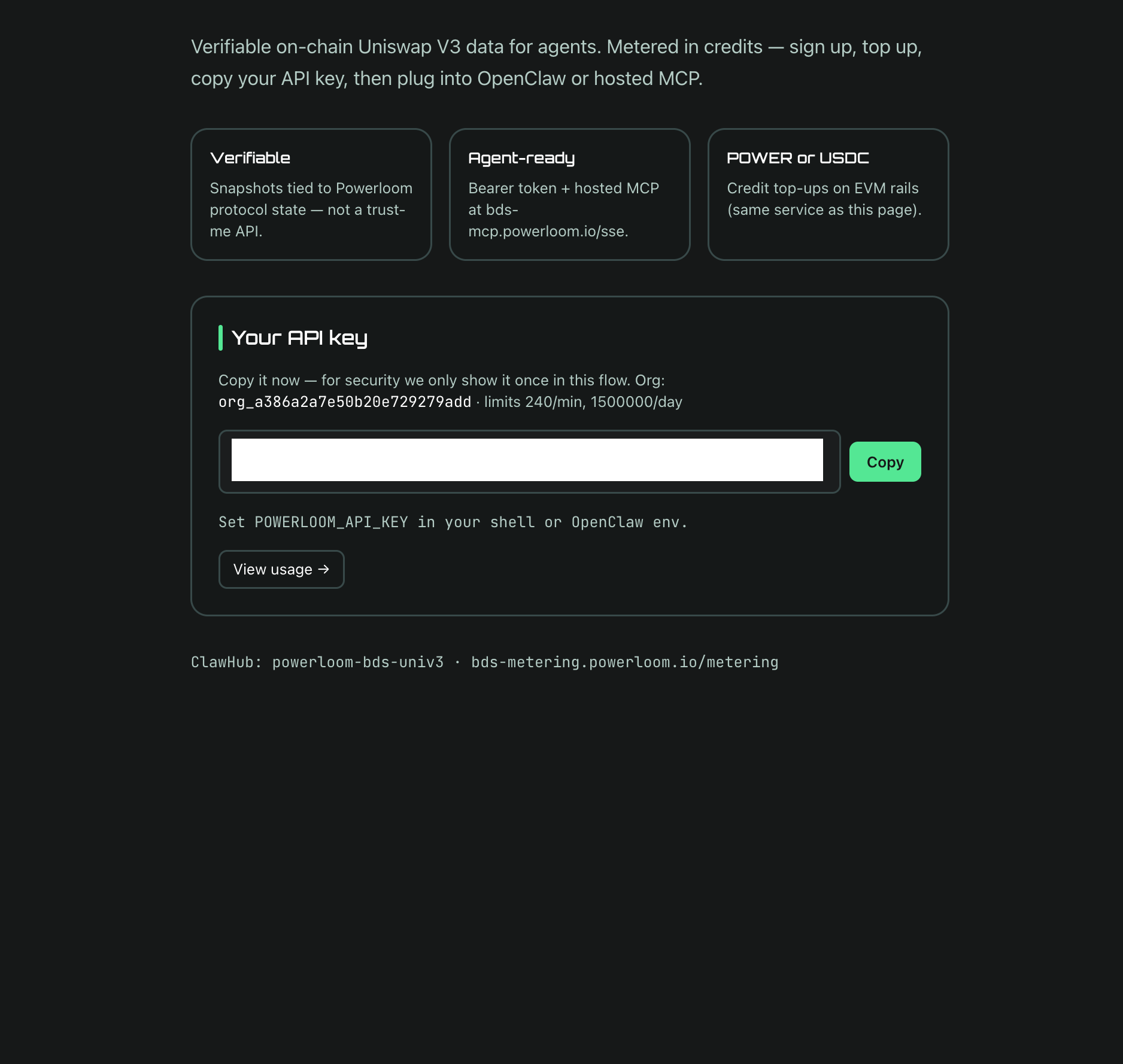

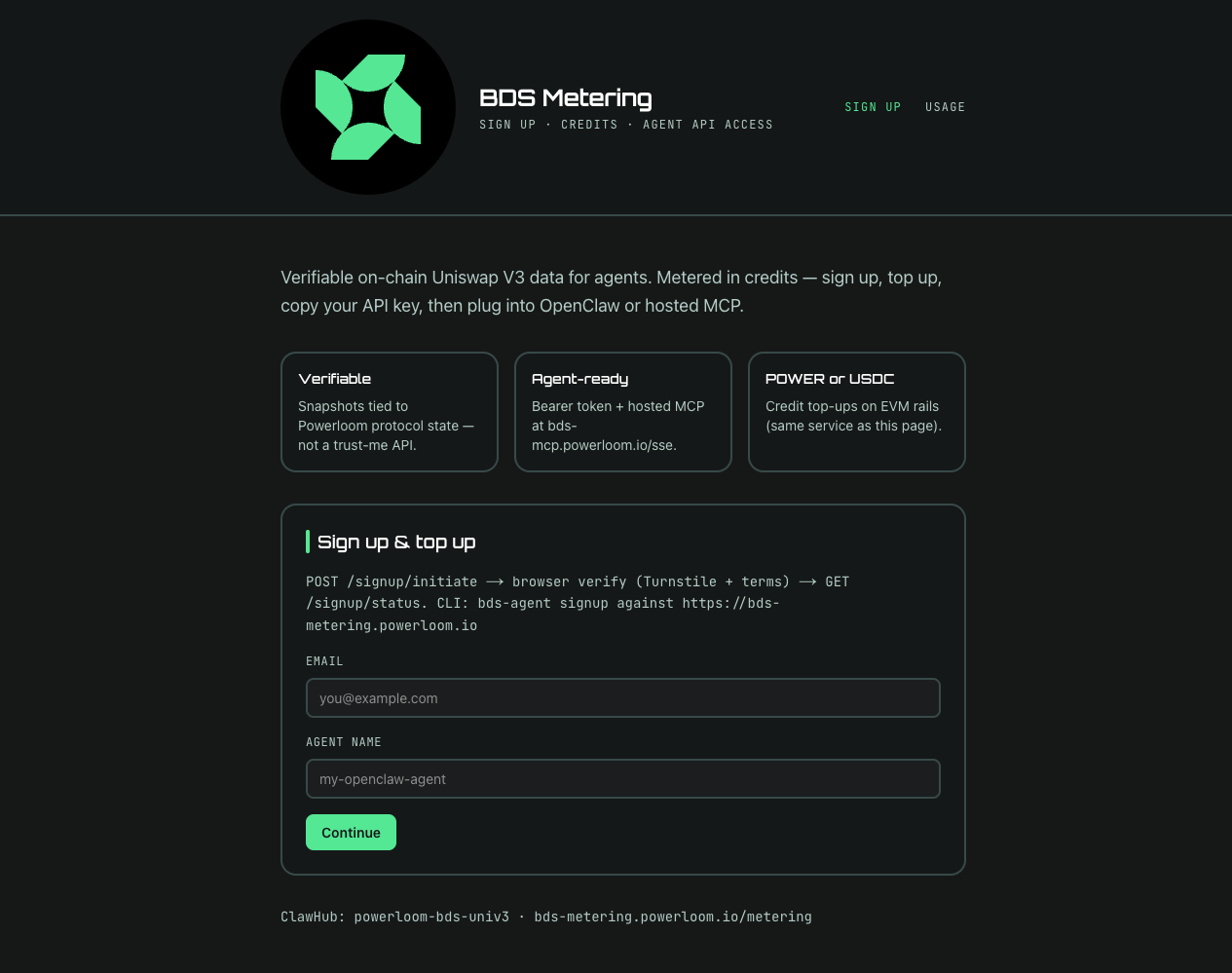

You can sign up directly in the browser at bds-metering.powerloom.io/metering — no CLI required. The signup page features a dark-themed interface with Powerloom branding, a hero section highlighting three value cards — Verifiable, Agent-ready, and POWER or USDC — and a subtitle describing verifiable on-chain Uniswap V3 data for agents. Enter your email and agent name on the SIGN UP tab, complete Cloudflare Turnstile verification, and your API key is displayed immediately.

Video walkthrough: Free API key for BDS: Browser Signup · BDS & Agents playlist

Alternatively, use the CLI: bds-agent signup runs the same device flow from the terminal.

info

For complete CLI instructions, see the Headless Agentic CLI for BDS page.

What you can do with 2 free credits:

• Headless — bds-agent query, bds-agent run against any pre-packaged recipe, or direct curl against /mpp/... routes. See Quickstart Path B.
• OpenClaw, no wallet — paste your sk_live_... into the free-key one-shot prompt and the agent installs the powerloom-bds-univ3 skill, wires the key, and creates a Whale Radar cron with onchain verification in every alert. See Quickstart Path A.
• Hosted MCP, any framework — point Claude Code, Cursor, LangGraph, CrewAI, or any SSE-MCP-capable client at https://bds-mcp.powerloom.io/sse with Authorization: Bearer sk_live_.... See OpenClaw & Hosted MCP.

The same sk_live_... works across all three surfaces. Top up with native $POWER (or any supported plan token) when the 2 credits run out — see Top-up below; no re-onboarding required.

Pay-signup (agent-first, no browser)

For automated or headless signup, use the pay-signup API directly. This requires a funded EVM wallet.

HTTP flow:

1. GET /credits/plans — discover available plans: id, chain_id, token_symbol, payment_kind (erc20 or native_value).
2. POST /signup/pay/quote — supply agent_name, plan_id, chain_id, token_symbol, payer_address. Returns signup_nonce, recipient, amount_atomic.
3. Pay on-chain — transfer tokens to recipient for amount_atomic (ERC-20 or native per payment_kind).
4. POST /signup/pay/claim — supply signup_nonce and tx_hash. Returns api_key.

Using bds-agent:

bds-agent credits plans
bds-agent credits setup-evm          # saves wallet creds to profile
bds-agent signup-pay \
  --plan-id <id> \
  --chain-id <chain> \
  --token-symbol <SYMBOL>
bds-agent credits balance

The bds-agent CLI is a reference client for the same HTTP flow; both paths issue an identical sk_live_... key.

Rotate a lost API key (pay-signup wallet)

This only applies if you created your account with pay-signup (on-chain payment). The server stores your wallet as payer_address and never stores the raw API secret.

How the server knows it is you

1. You request a challenge: POST /api-key/recover/challenge with { "address": "0x..." }. The server checks that a non-revoked API key exists for that payer_address.
2. It returns a single-use nonce, an exact message string (includes your address, nonce, expiry, and terms URL), and persists that message server-side.
3. You sign message with the EIP-191 wallet flow (personal_sign / signMessage). A valid signature for that address is treated as proof of control of the pay-signup wallet.
4. You submit POST /api-key/recover/verify with { "address", "nonce", "signature" }. The service verifies the signature against the stored challenge text, then replaces api_key_hash with a new key and returns the new sk_live_... once. The previous key stops working immediately.

Email/browser signup keys are not tied to payer_address; use normal signup support flows for those accounts.

OpenClaw and other MCP users

The hosted MCP server only accepts an existing Bearer key; it does not run the rotation HTTP flow for you. After you rotate, update POWERLOOM_API_KEY (or your client config) with the new sk_live_....

Script (Node, metering repo)

From a checkout of powerloom/bds-agenthub-billing-metering:

npm install
METERING_BASE_URL=https://bds-metering.powerloom.io \
WALLET_PRIVATE_KEY=0x... \
npm run rotate-api-key

The script prints the new key on stdout. Use --base-url=https://... instead of METERING_BASE_URL if you prefer.

Agents

Any agent that already holds the pay-signup wallet can automate the same two POSTs plus signMessage; there is no separate MCP tool for rotation today.

Pay-signup with OpenClaw

If you use OpenClaw and want autonomous wallet-funded onboarding (50 $POWER for the launch plan = 10 credits + 2 bonus = 12 total), the powerloom-bds-univ3 skill ships a one-shot prompt that installs the skill, runs signup-pay.mjs against your wallet, claims the API key, wires env, and creates a Whale Radar cron — all from a single message.

No wallet yet? Start free.

You don't need a wallet to use OpenClaw with this skill. Run bds-agent signup for a free sk_live_... (2 credits, browser device flow) and use the free-key one-shot prompt instead. Same skill, same cron, same verification — no on-chain payment.

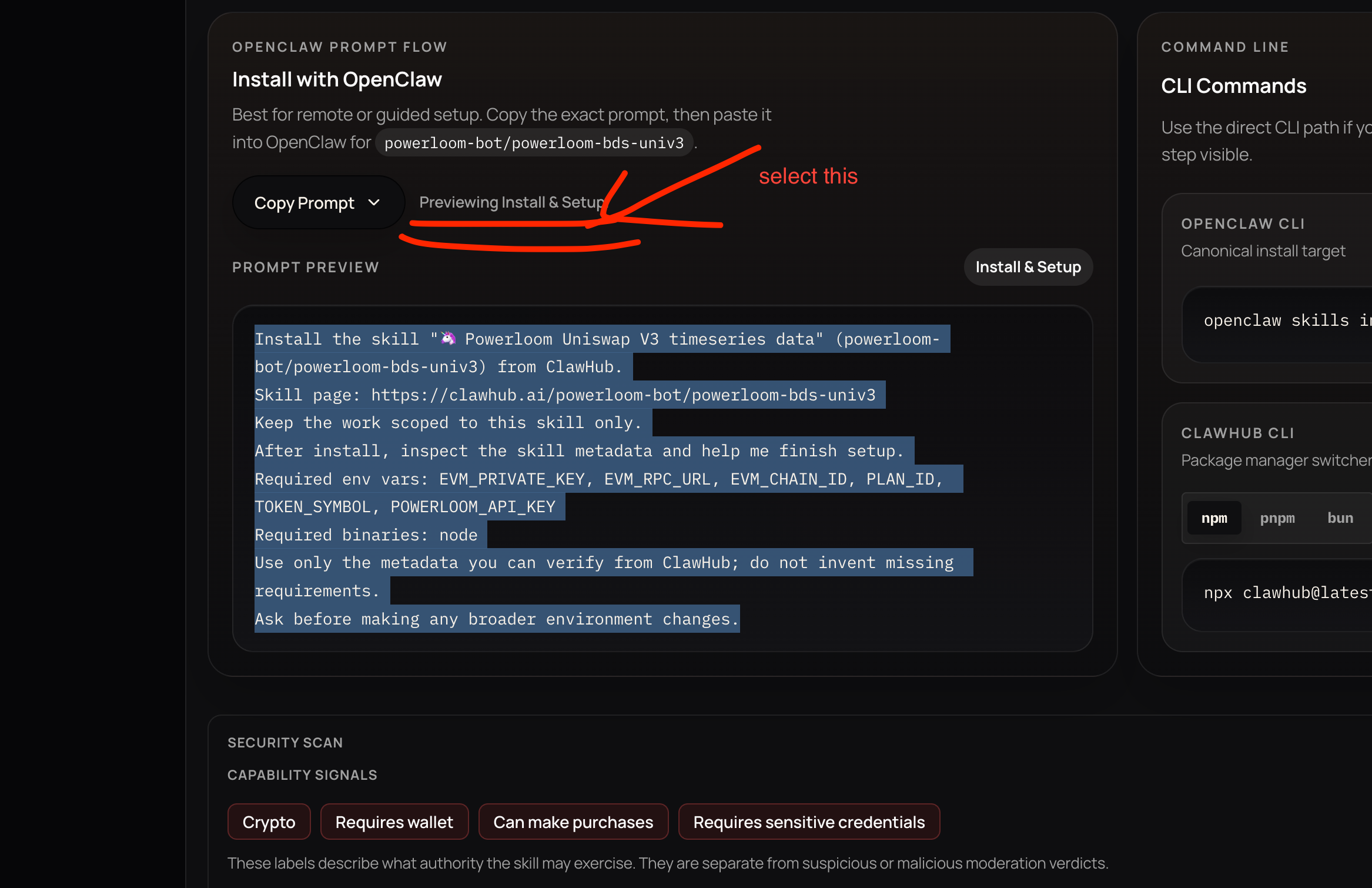

The first step is to install the skill from ClawHub, and is a subset of the one-shot prompt for installing the skill and running the pay-signup and cron setup.

You can copy the same prompt from the skill page by selecting the "Copy Prompt" button on the skill page. with the option to Install & Setup instead of Install Only.

You will be prompted just once most likely to only provide the private key of the wallet you want to use for the pay-signup.

tip

• We recommend using burner wallets for the pay-signup and topup to avoid any risk of losing funds.
• It is always a good idea to setup a micro top-up and dispatcher service to fund and topup such wallets automatically.

Successfully installed and setup

Top-up

Top-up adds credits to an existing key without creating a new account. It uses the same on-chain payment pattern as pay-signup.

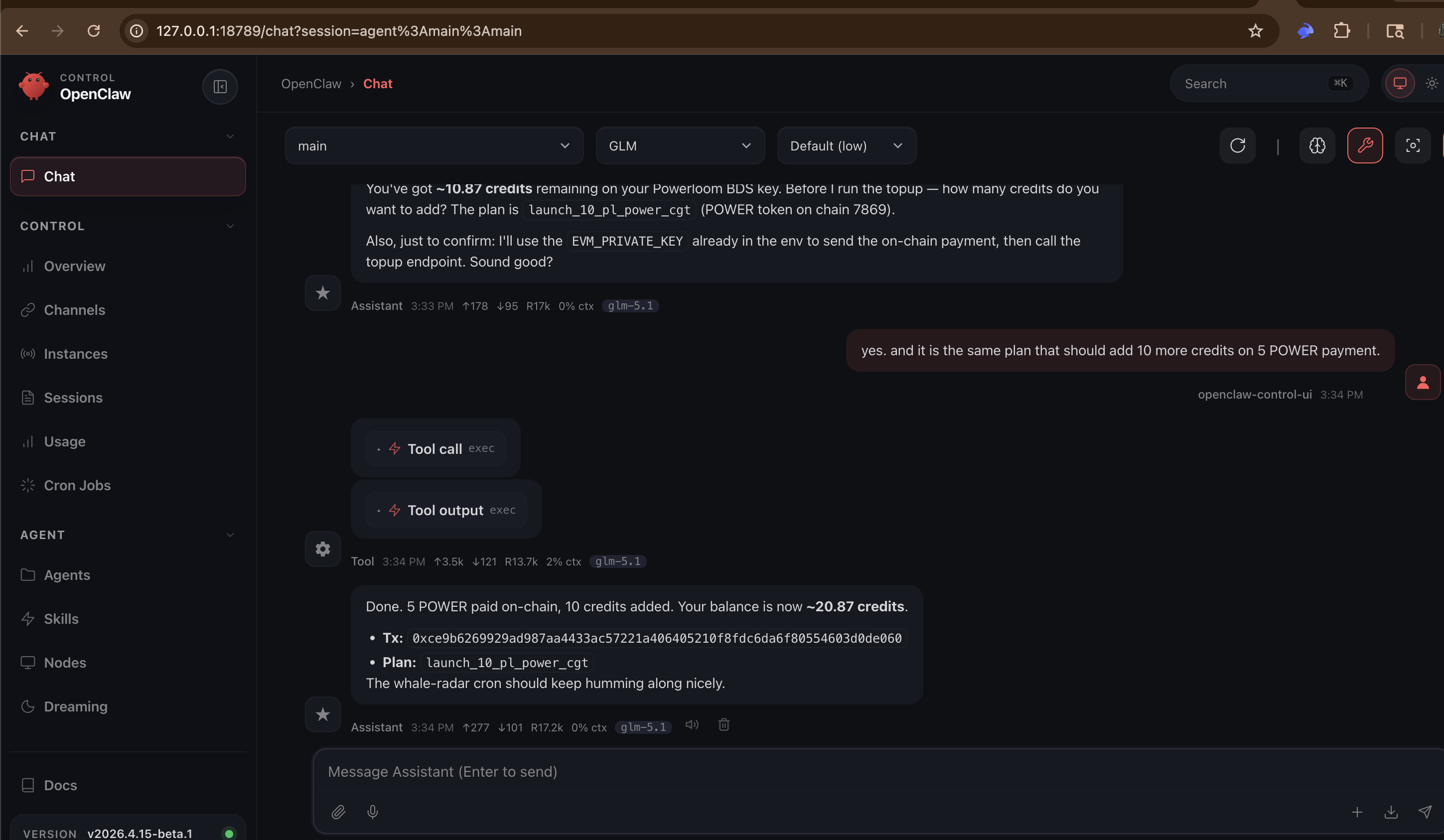

Top-up with OpenClaw

If you use OpenClaw, you can use the OpenClaw skill to topup credits.

HTTP:

POST /credits/topup
Authorization: Bearer sk_live_...
{ "plan_id": "...", "chain_id": "...", "tx_hash": "0x..." }

CLI:

bds-agent credits setup-evm           # if not already saved
bds-agent credits topup

The powerloom-bds-univ3 skill also ships node scripts/credits-topup.mjs for Node-only environments — same gate as signup-pay.mjs: --dry-run, then --yes on the broadcast invocation (preferred over persisting confirmation env vars in OpenClaw); CI may use POWERLOOM_CREDITS_TOPUP_CONFIRM=yes once.

How credits are consumed

Credits are deducted when the full-node resolver processes a metered /mpp/... request. This happens whether the request comes from:

• a direct HTTP call with Authorization: Bearer,
• the hosted MCP server forwarding a tool call on your behalf, or
• bds-agent run executing a YAML recipe.

The hosted MCP server does not apply a separate charge layer. It forwards your Bearer token to the resolver, which applies the standard metering deduction. MCP tool access is gated by the same key and balance state.

A balance at or below zero causes the resolver to return 402. The hosted MCP server propagates this back to the MCP client. Scripts in powerloom-bds-univ3 call get_credit_balance before each recipe run to surface this before it becomes a mid-run 402.

How much each call costs

Pricing is not one flat rate for every /mpp/ route. Your balance is debited when the resolver accepts a metered request. Per-route credit_weight, stream session rates, and time-series lookback tiers all come from one place:

→ Endpoint Catalog — Credit weights (live table from api/endpoints.json)

Credit plan (summary):

• Typical GET (weight 1): 1/7200 of a credit per request — about 7200 such calls per 1 credit.
• Heavier routes: multiply that base by the route’s catalog weight (e.g. weight 10 → 10/7200 credits per call).
• SSE stream (/mpp/stream/allTrades): 0.01 credits per connection when the stream opens (not per event on the wire).
• Time series (/mpp/timeSeries/...): weight 5 × a lookback multiplier by window — see Endpoint Catalog → Time series lookback.

Pulse trader (bds-agent trade run): GET /mpp/stream/allTrades for the session, plus GET /mpp/tokenPrices/... each epoch with default --price-source usd. No separate Pulse or CLI fee — only catalog-priced routes.

YAML / MCP agents: many recipes use bds_stream → the same stream endpoint; you pay the session rate above, not per SSE message.

Monitor spend with bds-agent credits usage by-endpoint or the Usage Dashboard Top endpoints table. Plans above are how you buy more credits.

Usage and account dashboard

Inspect credit usage per API key:

curl -sS "https://bds-metering.powerloom.io/credits/usage/summary?days=30" \
  -H "Authorization: Bearer sk_live_..."

The response includes daily totals and a by_endpoint breakdown (calls and credits per BDS route template).

Or via CLI:

bds-agent credits usage
bds-agent credits usage summary --days 30

Browser dashboard: navigate to the USAGE tab at bds-metering.powerloom.io/metering/account, paste your API key (stored in sessionStorage only), and view balance, usage-by-day, top endpoints, and recent activity. See the Usage Dashboard section below for a full walkthrough with screenshots.

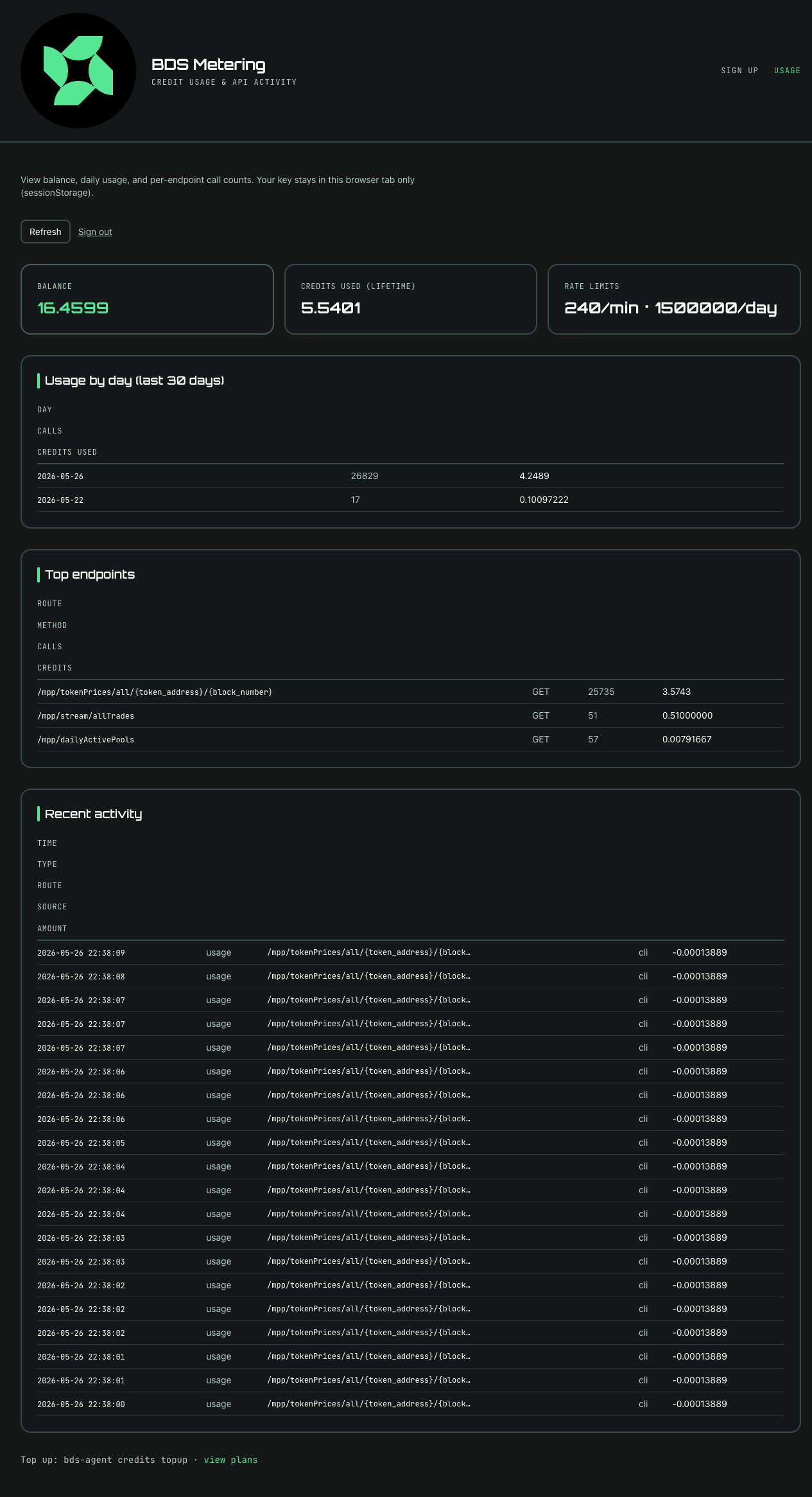

Usage Dashboard

The USAGE tab at bds-metering.powerloom.io/metering/account provides a browser-based dashboard for monitoring credit consumption in real time. You unlock the dashboard by pasting your sk_live_... API key into the prompt — the key is stored in sessionStorage only (never persisted to disk or sent to a third party).

The dashboard displays the following cards and tables:

Card / Table	Details
Balance	Current remaining credits (e.g. 16.4599 credits).
Credits Used (Lifetime)	Total credits consumed since account creation (e.g. 5.5401).
Rate Limits	Per-minute and per-day request caps (e.g. 240/min · 1,500,000/day).
Usage by day (last 30 days)	Table with columns DAY · CALLS · CREDITS USED — daily aggregate of metered requests.
Top endpoints	Table with columns ROUTE · METHOD · CALLS · CREDITS — ranked by credit consumption. Common routes include /mpp/tokenPrices/all/{token_address}/{block_number}, /mpp/stream/allTrades, and /mpp/dailyActivePools.
Recent activity	Table with columns TIME · TYPE · ROUTE · SOURCE · AMOUNT — individual metering events with timestamps and sources (e.g. cli).

The dashboard also provides Refresh and Sign out buttons. Signing out clears the API key from sessionStorage.

POWER token discount

Credit plans priced in POWER (the Powerloom coordination token) carry a bulk discount relative to USDC plans. See GET /credits/plans for the current price matrix across available chains and token symbols.
